CABS-AW-2-2-430 日本SSD西西蒂離子棒除靜電電極
| 參考價 | ￥ 3500 |
| 訂貨量 | ≥1件 |
- 公司名稱 美薩科技（蘇州）有限公司
- 品牌 SSD/日本
- 型號 CABS-AW-2-2-430
- 產地 日本
- 廠商性質 代理商
- 更新時間 2025/6/16 17:50:27
- 訪問次數
聯系方式：陳寧13915577898 查看聯系方式
聯系我們時請說明是化工儀器網上看到的信息，謝謝!
組裝工具,，科學儀器，分析儀器,，小型設備,，工業設備，防靜電器材,，半導體泵,，半導體流量計
| 應用領域 | 電子/電池,汽車及零部件,電氣,綜合 | 類型 | 離子棒除靜電電極 |
|---|---|---|---|
| 型號 | CABS-AW-2-2-430 | 長度 | 430mm |
| 行業 | 半導體設備 |
日本SSD西西蒂離子棒除靜電電極這是一種使用 HDC-AC 方式的小型棒型 AC 離子發生器。
日本SSD西西蒂離子棒除靜電電極靜電消除電極體積小,，控制器和高壓電源分開,，因此可以安裝在狹窄的空間內。 此外,，它是一種高性能型,，配備了各種傳感器，例如高壓異常檢測,、帶電物體檢測,、離子量檢測和放電針泄漏檢測
這是采用 HDC-AC 方式的小型條形 AC 離子發生器。靜電消除電極體積小,，控制器和高壓電源分離,，即使在狹窄的空間也能安裝。此外,，它是配備了高壓異常檢測,、帶電物體檢測、離子量檢測,、放電針脫落檢測等各種傳感器的高功能型,。
a newly developed discharge needle loss detection sensor (Needle Error). We will inform you of installation abnormalities such as forgetting to attach the discharge needle when replacing it.
Ion amount detection sensor (Cleaning)Equipped ion amount detection (Cleaning) notifies
you of a decrease in static elimination capacity due to dirt.Equipped with a charged object proximity sensor, a
new charged object detection sensor function (ChargeSNS) is also installed. Detects the approach of an electrically charged object.Increased length varietyElectrodes
can be manufactured in 40 mm increments from a minimum of 110 mm to a maximum of 1030 mm. Under 1m, the variety of products has increased compared to CABX.30% improvement in static elimination performanceIn
the case of short-distance static elimination, the static elimination effect has been increased by 30% by optimizing the structure. (CABX Comparison)Improved safetyA
safety cover is now included as standard on the discharge hand. It can be easily installed by sliding, so please attach it as necessary. (Fig. 1)
Fig. 1 Installation of discharge needle safety cover
Product model name
When ordering, please contact us with the following product model name. The controller and high-voltage power supply are set in one set for each electrode.
| Product model name | CABS-AW-y-z-ｘｘｘｘ ＊1 ＊2 | |
|---|---|---|
| System configuration | Static elimination electrode (with 1m high-voltage cable) | CABS-DBW-ｘｘｘｘ ＊1 |
| High voltage power supply | CABS-TR1 | |
| controller | CABS-CT1-ｘｘｘｘ ＊1 | |
| CT-TR connection cable | CABS-CTRCB-2M (cable length 2 m) or CABS-CTRCB-5M (cable length 5 m) | |
| Power & Signal Cables | CABS-PSCB-2M (cable length 2 m) or CABS-PSCB-5M (cable length 5 m) | |
*1 The
controller is adjusted for each electrode length, so the length is listed in the model. It cannot be attached to electrodes of different lengths. In addition, it is not possible to connect multiple electrodes to the same controller or high-voltage transformer.
*2
y specifies the length of the CT-TR connection cable. 2:2 m and 5:5 m
z specify the length of the power and signal cables. 2:2m,、5:5m
Product Variety
The length of the static neutral electrode can be selected from 110 mm to 1,030 mm.
The high-voltage power supply and the anti-static electrode are connected by a 1 m high-voltage cable.
y is the length of the CT-TR connection cable, and z is the length of the power and signal cables.
Example: CABS-AW-2-5-510
Electrode length: 510 mm, CT-TR connection cable: 2 m, Power and signal cable: 5 m
Air flow rate (typical example, reference value)
| Static elimination electrode length | Air pressure (MPa) | ||||
|---|---|---|---|---|---|
| 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | |
| CABS-AW-y-z-110 | 3 | 4 | 6 | 7 | 9 |
| CABS-AW-y-z-270 | 10 | 16 | 22 | 27 | 32 |
| CABS-AW-y-z-430 | 18 | 28 | 37 | 47 | 56 |
| CABS-AW-y-z-590 | 25 | 38 | 50 | 63 | 76 |
| CABS-AW-y-z-750 | 32 | 48 | 65 | 82 | 99 |
| CABS-AW-y-z-910 | 37 | 58 | 78 | 98 | 119 |
| CABS-AW-y-z-1030 | 42 | 64 | 87 | 108 | 133 |
Unit:l/minANR
specification
| Model | CABS-AW-x-y-**** |
|---|---|
| System configuration | Static elimination electrode: CABS-DBW-××××*1 Controller: CABS-CT1-××××*1 High voltage power supply: CABS-TR1 CT-TR connection cable: CABS-CTRCB-xM (x=2 or 5) Power supply and signal cable: CABS-PSCB-yM (y=2 or 5) |
| Electrical Specifications | Input voltage: DV24V±5% Power consumption: 12VA Output voltage: ±8kV 0-p |
| Ion generation method | Corona discharge method |
| Air piping | Outline φ6 air tube |
| Maximum air supply pressure | 0.5MPa |
| Available air | Clean Dry Air |
| Static elimination time | Within 1.0 sec (at a distance of 300 mm, air pressure of 0.3 MPa, and electrode length of 350 mm) |
*1: The length of the electrode is entered. A type controller of the same length can be connected to the electrode.

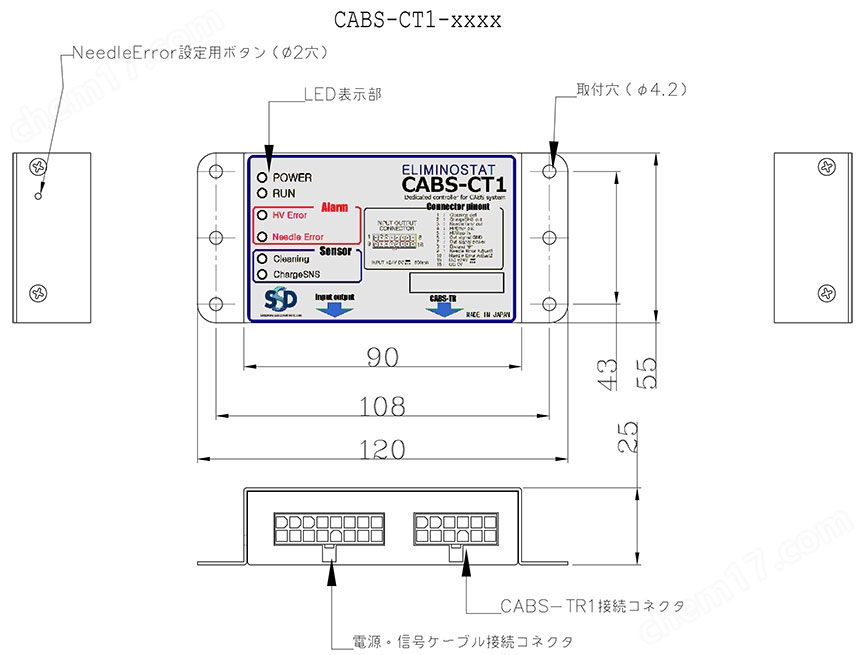

External Drawing
View as PDF
View as PDF
View as PDF
